Description

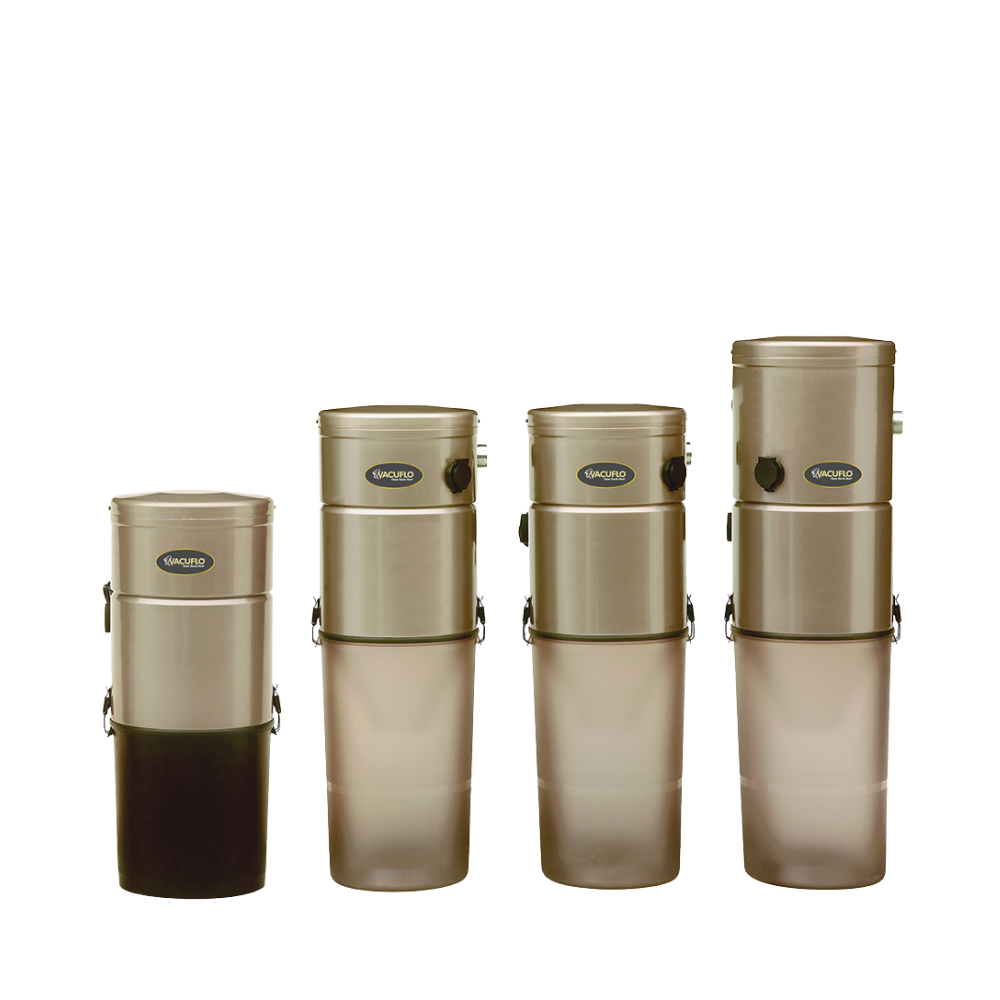

VACUFLO Filtered Cyclonic Power Units utilize cyclonic separation for primary filtration and a pleated filter for secondary filtration. Unlike central vacuum systems that rely on permanent cloth filters, the powerful performance of VACUFLO will not decrease as dirt accumulates.
| Model | Recommended Home Size (sq. feet) | Sealed Vacuum(Water Lift) | CFM Max | Max Air Watts* | Volts | Max/Avg Amps** | Collection Capacity (gallons) | Level of Quietness (decibels)*** |
|---|---|---|---|---|---|---|---|---|
| FC300 | up to 2,500 | 106" | 115 | 422 | 120 | 11.2/9.9 | 4 | 73.7 dBA |
| FC550 | up to 5,000 | 125" | 121 | 520 | 120 | 14.0/11.3 | 6 | 64.2 dBA |
| FC650 | up to8,000 | 141" | 124 | 575 | 120 | 15.7/12.4 | 6 | 62.8 dBA |
| FC1550 Dual Motor |
up to 18,000 | 128" | 228 | 1010 | 240 | 13.4/11.6 | 6 | 66.0 dBA |
* ASTM recognizes air watts as air power and is defined as “above the floor cleaning potential.”
** Maximum amps refer to the potential amount of current if the power unit is running in a stand-alone situation. (no tubing or accessories attached). Average amps refer to the actual amount of current used when the power unit is in typical operation (installed, with accessories attached).
*** ASTM draft F11.50.07 test method was used to determine dBA ratings. Sound levels were measured at 6′ from the power unit. All power units were exhausted outdoors.
Full-service warranty
Vacuflo’s True Cyclonic ©, Filtered Cyclonic™ and maxum Replaceable Bag units all offer a Limited Lifetime Warranty. This covers all permanently installed components of your whole-house cleaning system for as long as you live in your home. See manual for more details.
